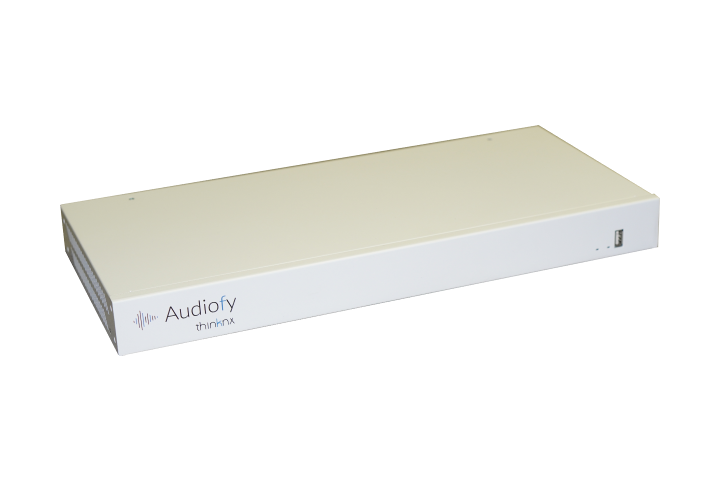

  • Thinknx Audiofy P4 4 zones audio amplifier

    Audiofy is the simple yet powerful integrated multiroom professional audio system created by Thinknx. Only one device combines audio matrix routing, power amplifiers for each output and up to four independent network players. It is also fully confugrable via web. The system permits to spread audio contents from external analog sources or from internal players towards up to 32 rooms with superior pure sound quality.

    It permits to spread music coming from 2 analog inputs or from the 4 internal player to 4 amplified outputs (expandable to 32).

    4x internal network player
    2x single ended inputs
    4x amplified stereo out
    1x ethernet port



    1x EIB/KNX TP port
    2x USB port
    Power 100-240 VAC 200W max

    1 440.00 €
  • Thinknx Envision 7 KNX supervision Touch server

    ThinKnx is a universal, multi-purpose supervisor for building automation that allows to manage all the functions of the systems integrated into your smart home or building. The different functions of home automation are handled by ThinKnx through a simple, appealing and highly customizable multi-platform interface that allows to intimately and freely interact with the system using your tablet, iPhone, Android or Windows Smartphone.

    Envision Touch Server is an all-in-one Touch Server able to grant the comfort of a touch user interface and the powerful features of a ThinKnx server, all in one device. Through Envision, the end user is able to control all the installed devices, thanks to the comfortable touch screen with a low power consumption. The main feature of the Envision touch server is the bidirectional interaction between KNX protocol and all other supported devices, such as Philips Hue, MyHome BTicino, Z-Wave, Modbus e Lutron. Its built-in sensor board, loudspeaker and microphone enable the use of Envision as doorcom unit and thermostat at the same time. Thanks to the integration of third-party systems, Envision can also be used as indoor station for the anti-theft system. One single device for multiple interactions.

    Envision 7 characteristics :

    • Octa-core Cortex A53 CPU
    • Capacitive touch screen 7.0” TFT, visible area 155x87mm, 1024x600 resolution
    • Suite Thinknx PRO
    • Linux operating system
    • KNX net/IP interface/router
    • 1x native EIB/KNX port with direct connection through clips
    • 1x network port
    • 1x USB port
    • 1x RS232 port
    • 1x RS485 port
    • Consumption 10W Max
    • Temperature sensor
    • Humidity sensor
    • Ambience luminosity sensor
    • Power: 12-24VDC – 1.5A Max (power supply not included) (e.g. : 30W 12V power supply)
    • Frame not included : Envision frame

    1 220.00 €
  • ThinKnx Micro KNX Supervision device

    ThinKnx is a universal, multi-purpose supervisor for building automation that allows to manage all the functions of the systems integrated into your smart home or building. The different functions of home automation are handled by ThinKnx through a simple, appealing and highly customizable multi-platform interface that allows to intimately and freely interact with the system using your tablet, iPhone, Android or Windows Smartphone.

    ThinKnx Micro characteristics :

    • Fanless processing device optimized for continuous operation
    • Suite ThinKnx PRO
    • Linux operating system
    • Internal solid state memory
    • Powerful multicore CPU
    • 1x KNX TP port
    • 1x Ethernet 10/100 port
    • 1x USB port
    • KNX net/IP interface/router
    • Real time internal clock
    • KNX traffic led
    • Power 9-24Vdc (power supply included)
    • Desktop mounting

    1 008.00 €
