JUNG Socket insert, French/Belgian system 1520NFEINS

2-pole + male earth pin, 16 A / 250 V ~
CEE 7/5
Supporting frame is integrated into the earth protection.

Compatible socket cover.

Compatible Frame.

JUNG 1520F socket with charger USB type A and type C

2-pole + male earth pin, 16 A / 250 V ~
CEE 7/5
with enhanced contact protection / shutter (Safety Plus)
with 1 USB port type A and 1 USB port type C
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

Installation in flush box depth (inner dimension): min. 57 mm

Schneider - D-Life - socket - FR - mechanism and cover -MTN2500-

Frame and surface mounting box sold separately:

-1gang-Frame

-Schneider-D-Life-1-post - surface mounting box

Schneider - D-Life - socket - Schuco - mechanism and cover -MTN2300-

Frame and surface mounting box sold separately:

-1gang-Frame

-Schneider-D-Life-1-post - surface mounting box

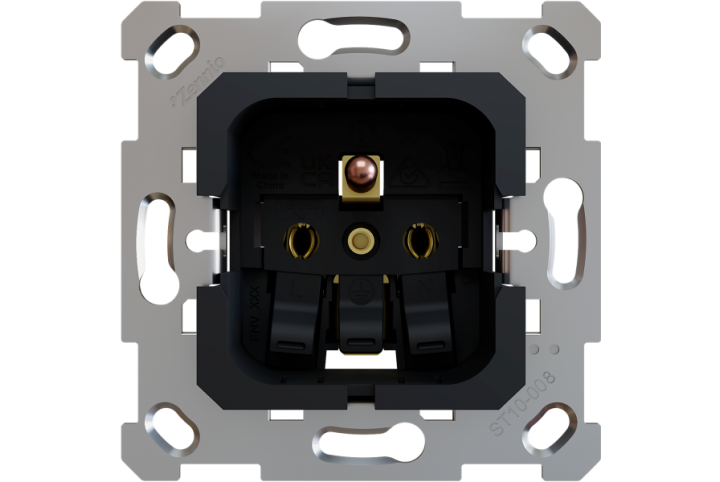

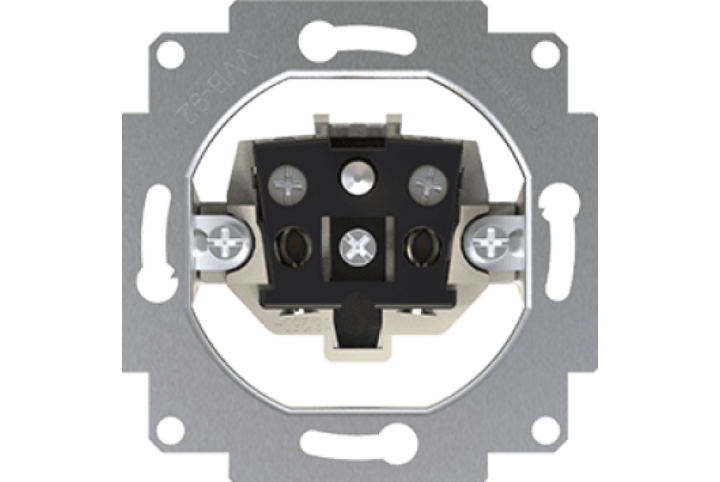

Zennio ZS55 - mechanism French Socket  -8300005

ZS55 is the Zennio series of 55 x 55 mm switches and sockets. They have an elegant and timeless design. They are flush fitting with frames and a perfect integration with capacitive switches Flat 55 and Tecla 55.

compatible frame ZS55.

compatible cover ZS55

Technical features:

• Socket type E
• Power supply: 16 A / 250 V ~
• Wires up to 2.5 mm²
• Screw terminals
• Screw and optional claws fixing
• Childproof safety shutter
• International standard IEC 60884-1

Zennio ZS55 - mechanism Euro-American Socket  - 8300001

ZS55 is the Zennio series of 55 x 55 mm switches and sockets. They have an elegant and timeless design. They are flush fitting with frames and a perfect integration with capacitive switches Flat 55 and Tecla 55.

compatible frame ZS55.

compatible Cover ZS55

Technical characteristics Euro-American socket

• Power handling: 16 A / 250 V ~
• Maximum cable section: 2.5 mm2
• Connection method: screw terminals
• Fixing mechanism: screws and optional claws
• Childproof safety shutter

Zennio ZS55 - mechanism Schuko socket 16 A -8300003

ZS55 is the Zennio series of 55 x 55 mm switches and sockets. They have an elegant and timeless design. They are flush fitting with frames and a perfect integration with capacitive switches Flat 55 and Tecla 55.

compatible frame ZS55.

compatible cover ZS55

Technical features:

• Socket type F
• Power supply: 16 A / 250 V ~
• Wires up to 2.5 mm²
• Screw terminals
• Screw and optional claws fixing
• Childproof safety shutter
• International standard IEC 60884-1
