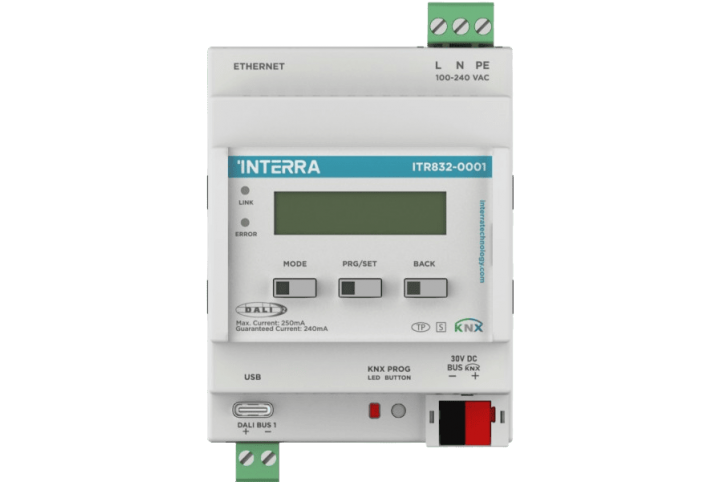

Interra 1 channel KNX-DALI Gateway ITR832-001

KNX - DALI Gateway w/ Ethernet (1x64 DALI)

ITR832-0001 is a single-channel KNX-DALI interface device used as an interface between DALI and KNX installations, enabling communication between the two protocols.

DALI devices (ballasts, etc., ECGs) that are connected to the line are supplied with the internal DALI power supply. Up to 1x64 DALI ballasts can be connected and 16 groups, 16 scenarios and 64 devices can be controlled with each DALI channel. It is also compatible with DT0, DT1, DT6, DT8-TC, DT8-RGB, DT8-RGBW. out of.

In addition, independent emergency lighting according to EN 62386-202 is supported and emergency lighting tests (e.g. function and time tests) can be triggered via the KNX cable. Feedback can also be sent to the KNX line. Each DALI device can be controlled individually, in a group or via broadcast control.

Interra 160mA KNX power supply  ITR900-116 :

• Mounting Location: Installation only on a 35 mm DIN rail of a distribution board.
• Device needs at least 4 standard modules width at installation.
• Power supply has an additional 30 VDC short circuit and overload protected voltage output that can be used to power an additional bus line (in combination with a separate choke).
• The voltage output is overload, short circuit and over temperature protected.
• Output without choke can be used as a constant 30 VDC supply and output with choke can be used as a KNX Bus supply.

Interra 160mA KNX power supply ITR900-0116

nterra 160 mA KNX Power Supplies generate and monitor bus voltage (SELV) for the KNX devices connected to the bus. They have 160 mA busloads with an integrated choke and wide-range mains input for worldwide usage. The bus line is decoupled from the power supply by an integrated choke. The voltage output is short-circuited and overload protected. The two-color LED indicates (Green and Red) device output status. It has a wide range of input from 85…265 V AC, to 50/60 Hz.


Main Features
Power Consumption (Max)    21 W
Power Consumption (Typical)    6.6 W
Nominal Current (Total)    160 mA
Nominal Voltage    30V DC
Type of Protection    IP20

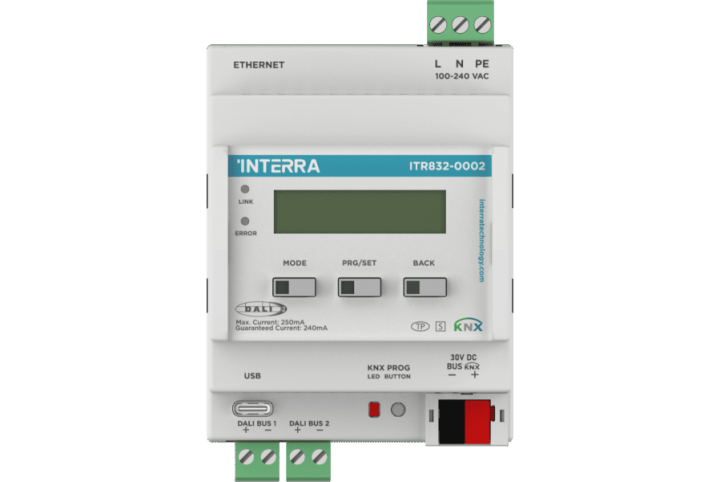

Interra 2 channels KNX-DALI Gateway ITR832-0002

KNX - DALI Gateway w/ Ethernet (2x64 DALI)

ITR832-0002 is a dual-channel KNX-DALI interface device used to provide an interface between DALI and KNX installations, enabling communication between the two protocols.

DALI devices (ballasts, etc. ECGs) connected to the line are supplied with the internal DALI power supply. Up to 2x64 DALI ballasts can be connected and with each DALI channel, 16 groups, 16 scenarios, and 64 devices can be controlled. It's also compatible with DT0, DT1, DT6, DT8-TC, DT8-RGB, DT8-RGBW.

In addition, independent emergency lighting according to EN 62386-202 is supported and emergency lighting tests (e.g. function and time test) can be triggered via the KNX line. Also, feedback on the KNX line can be sent. Each DALI device can be controlled individually, in a group, or broadcast control.

Interra ITR102 :

Description :

ITR102 device is used to interface the contacts to KNX bus substructure such as push buttons, switches etc. to make them communicating devices.

Configuration and features :

• The complete configuration of the device is performed via ETS3 or higher.
• Depending on ETS configuration and settings the product feature will be different.
• Avaialble functions are:
  • Switching
  • Dimming
  • Toggle
  • Blind Control
  • 2 Channel
  • Value Selected
• Most of functions only need one input and therefore each input might be assigned a different function. However there are also some functions which use two inputs such as “Dimming with 2 buttons” and “Shutter/Blinds with 2 buttons”.

Mounting, commissionning and safety notes :

• The device may only be installed and put into operation by a qualified electrician or authorized personnel.
• The device is inserted in a flush-mounted combined joint box.
• The installation location should not be in the outdoor area.
• The voltage potentials on the lines connecting the contacts are not electrically isolated from the bus voltage.
• Permitted cable length can be up to 5 meters and unused wires should be insulated.
• Avoid contact with liquids and corrosive gases.
• Do not get wrong connection for KNX Black and Red wires.
• Please do not forget to recheck all connections after installation

Interra 320mA KNX power supply  ITR900-132 :

• Mounting Location: Installation only on a 35 mm DIN rail of a distribution board.
• Device needs at least 4 standard modules width at installation.
• Power supply has an additional 30 VDC short circuit and overload protected voltage output that can be used to power an additional bus line (in combination with a separate choke).
• The voltage output is overload, short circuit and over temperature protected.
• Output without choke can be used as a constant 30 VDC supply and output with choke can be used as a KNX Bus supply.

Interra 320mA KNX power supply ITR900-0132

Interra 320 mA KNX Power Supplies generate and monitor bus voltage (SELV) for the KNX devices connected to the bus. They have 320 mA busloads with an integrated choke and wide-range mains input for worldwide usage. The bus line is decoupled from the power supply by an integrated choke. The voltage output is short-circuited and overload protected. The two-color LED indicates (Green and Red) device output status. It has a wide range of input from 85…265 V AC, to 50/60 Hz.



Main Features
Power Consumption (Max)    30 W
Power Consumption (Typical)    12.5 W
Nominal Current (Total)    320 mA
Nominal Voltage    30V DC
Type of Protection    IP20

Interra ITR106 :

Description :

ITR106 device is used to interface the contacts to KNX bus substructure such as push buttons, switches etc. to make them communicating devices.

Configuration and features :

• The complete configuration of the device is performed via ETS3 or higher.
• Depending on ETS configuration and settings the product feature will be different.
• Avaialble functions are:
  • Switching
  • Dimming
  • Toggle
  • Blind Control
  • 2 Channel
  • Value Selected
• Most of functions only need one input and therefore each input might be assigned a different function. However there are also some functions which use two inputs such as “Dimming with 2 buttons” and “Shutter/Blinds with 2 buttons”.

Mounting, commissionning and safety notes :

• The device may only be installed and put into operation by a qualified electrician or authorized personnel.
• The device is inserted in a flush-mounted combined joint box.
• The installation location should not be in the outdoor area.
• The voltage potentials on the lines connecting the contacts are not electrically isolated from the bus voltage.
• Permitted cable length can be up to 5 meters and unused wires should be insulated.
• Avoid contact with liquids and corrosive gases.
• Do not get wrong connection for KNX Black and Red wires.
• Please do not forget to recheck all connections after installation
