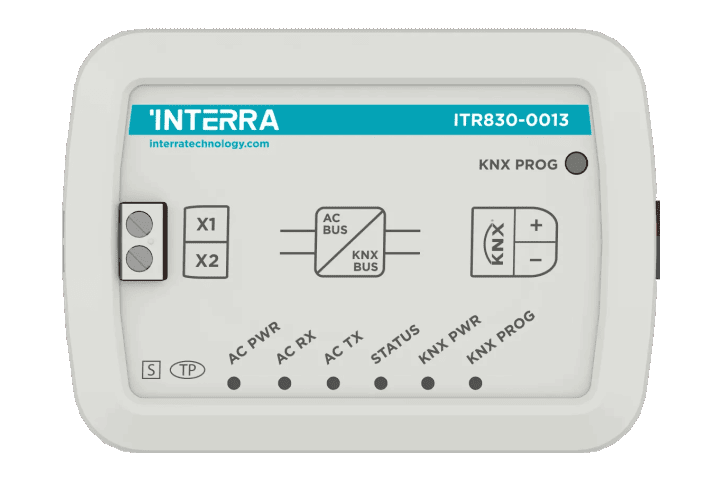

Interra Midea VRF AC - KNX Gateway ITR830-0013

TR830-0013 is an air conditioner gateway used for monitoring and controlling all the functioning parameters of Midea air conditioners via the KNX bus line. Midea VRF AC - KNX Gateway is compatible with models in VRF types categorized on the compatibility list published by Interra. Midea VRF AC - KNX Gateway has an easy installation feature and can be installed inside the own AC indoor unit or in a proper location away from the air conditioner, it connects one side directly to the electronic circuit of the AC indoor unit and on the other side directly to the KNX bus.

Main Functions:

• ITR830-0013 device provides complete bidirectional integration of Midea air conditioners with KNX bus.

• Includes 4 logical advanced parameters, each logical parameter has up to 4 inputs and can be configured as AND, OR & XOR.

• Includes 8 advanced converter parameters, each converter has four operations math calculations according to the input type.

• Logic and converter parameters can be used for energy savings, configurable scenes, temperature limits, etc.

• The Midea air conditioner unit provides error notifications for errors that may occur in exceptional cases.

Interra Just Touch ITR328-1002 :

• Pushbutton has Switching, toggle, dimming, shutter/blinds, thermostat controls, scenes, value, 2 channels, step switching mode features.
• Locking feature available for each button and complete device
• On/Off (2-points) and Proportional (Continuous or PWM) thermostat functions.
• Comfort, standby, economy and building protection operating modes.
• Manual or Automatic switching between Heating and Cooling modes.
• Temperature measuring through integrated sensor with possibility of sending the value on change and periodically to the bus.
• Temperature (measured, external, setpoint, outdoor values as ºC), CO2 concentration (from bus), humidity percentage, operating modes, fan levels, on/off indicators, warnings and locking status are displayed on screen.
• Fan controller available with different speed indicators.
• Relative humidity measuring through the integrated sensor with possibility of sending the value on the bus.
• Threshold alarm define for temperature, humidity and air quality levels.
• RGB LED control.
