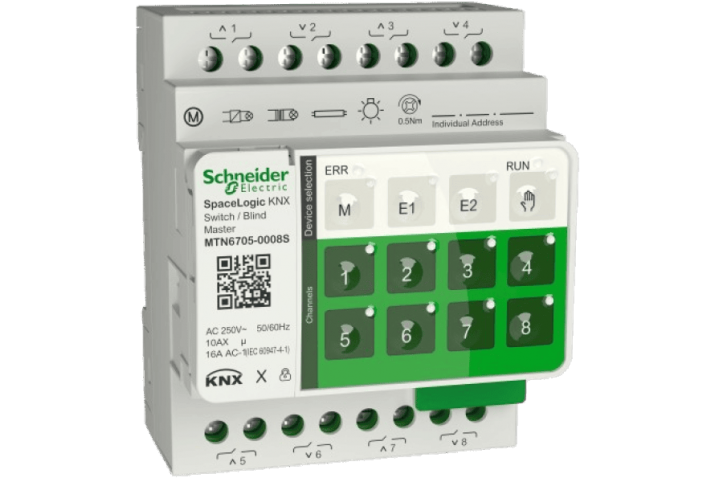

Schneider KNX - switch-blinds actuator 8-outputs -master- MTN6705-0008

Can be installed in combination with the extension actuator (to obtain 16 or 24 outputs):

Schneider KNX - Switch-blinds actuator 8 outputs - extension - MTN6805-0008

 If your extension is not side by side with the master or the second extension you can use this cable:

Schneider KNX Cable flexible

SpaceLogic KNX Switch/Blind Master. For independent control of up to 4 blind/roller shutter drives or for switching up to 8 loads via make contacts. The function of the blind or switching channels is freely configurable. All blind/switch outputs can be operated manually using push-buttons.

Schneider KNX - switch-blinds actuator 8-outputs - extension -MTN6805-0008

paceLogic KNX Switch/Blind Extension. The SpaceLogic KNX Switch/Blind Extension is a switch actuator that extends the channels of a SpaceLogic KNX Switch/Blind Master or a SpaceLogic KNX Universal Dimming Master. For independent control of up to 4 blind/roller shutter drives or for switching up to 8 loads via make contacts. The function of the blind or switching channels is freely configurable.

 Must be installed in combination with the master actuator:

Schneider KNX - switch-blinds actuator 8 outputs : MTN6705-0008

With "Schneider KNX - Mixed actuator 8 outputs - extension - MTN6805-0008" a connector is supplied for side-by-side installation.

If your extension is not side by side with the master or the second extension you can use this cable:

Schneider KNX Cable flexible

Interra Combo ITR508-16A

• Lighting control can be made with every output of the combo switch actuator.
• Heating control can be made with every output of the combo switch actuator.
• Every output of the combo module can be configured as shutter/blind provided that 2 consecutive outputs are available.
• Shutter/blind 24V configuration can be with 4 outputs of the combo module. However, it is only available in the first four outputs of the (*) blocks.
• Fan Coil 2 pipes configuration can be with 4 outputs of the combo module. However, it is only available in the first four outputs of the (*) blocks.
• Fan Coil 4 pipes configuration can be with 5 outputs of the combo module. However, it is only available in the first five outputs of the (*) blocks.
• The functionalities for each output include among other things timing functions, logic gates, scenes, disabling function, forced, working hours counter, periodical monitoring and different configurations for feedback telegrams.
• Last situation memory against power failure.
(*): Each block consists of every 6 outputs of the combo module that is starts from C1 output.

Zennio MAXinBOX 16 V4 - ZIOMB16V4

KNX multifunction actuator with KNX Secure - 16 outputs 16 A

Multifunction actuator for DIN rail (8 units) with 16 outputs (16 A C-Load) which offer multiple configuration as shutter channels, as individual outputs or as blocks of 2-pipes fan coil controller. It allows manual control of its outputs through the push buttons on the cover. It includes 20 independent logical functions. It is compatible with KNX Secure. Accessories: AC/DC shutter adapters.

Zennio MAXinBOX 16 V3 - MAXinBOX 16 Plus  Actuator 16 outputs KNX ZIOMB16V3 - ZIO-MB16P

MAXinBOX 16 V3 is replaced by the previous version MAXinBOX 16 Plus

Check in the PDF Retrieved references & Temporary references in Documents

The replacement of the product is due to the worldwide out-of-stock situation of components that we are experiencing and that forced us to change the microcontroller by another of the same model but different capacity to ensure the continuity of deliveries.

Characteristics:

• Mounting on DIN rail (EN 50022), pressurized.
• Does not require a power supply other than the bus power supply.
• Integrated BCU KNX bus coupling unit
• Equipped with 8 action channels configurable as:
  • shutter channels (up to 8)
  • individual outputs (up to 16)
• Independent manual control by output with push button and LED status indicator.
• Includes logic functions
• Delay on outputs
• Full data backup in case of power loss
• Withstands capacitive loads, maximum 140 µF.
• Complies with EC directives.

SAFETY INSTRUCTIONS

• Do not connect the main voltage (230V) or other external voltages to the KNX data bus.
• Connecting an external voltage can endanger the electrical safety of the entire KNX system.
• Use rigid cable to connect the outputs or flexible cable with terminals (spikes).
• Always check during installation that there is sufficient insulation between the 230V main voltage conductors and the conductors of the Bus and its extensions.
• It is possible to connect several phases, making sure that each phase is on a different terminal block (block 1, block 2, block 3 and block 4).
• Once the device has been installed, the output terminals must not be accessible.

Jung 230161SR

Rail mounting device, 8 rail units
with manual electronic operation and LED status indication
Project design and commissioning with ETS5 or a more recent version.
ETS product family: Output
Product type: Binary output

Intended use

• Switching of electrical loads with floating contacts
• Switching of electrically-driven blinds, shutters, awnings and similar hangings
• Mounting on DIN rail according to EN 60715 in distribution boxes


Product characteristics

• Outputs can be operated manually, construction site mode
• Feedback in manual mode and in bus mode
• Disabling of individual outputs manually or via bus
• Central functions
• Cyclical monitoring
• Can be updated with the ETS Service App

Characteristics switching operation

• Operation as NO or NC contacts
• Feedback function
• Logic operation and forcing function
• Central switching function with collective feedback
• Time functions: switch-on delay, switch-off delay, staircase lighting timer with pre-warning function
• Scene function
• Operating hours counter

Characteristics blinds operation

• Suitable for 230 V AC motors
• Operation modes ‘Blind with slats’, ‘Shutter/awning’, ‘Ventilation flap/skylight’
• Blind/shutter position directly controllable
• Slat position directly controllable
• Feedback of movement status, blind/shutter position and slat position
• Cyclical feedback during movement
• Forced position through higher-level controller
• Safety function: rain alarm, frost alarm, 3 independent wind alarms
• Sun protection function with auto Heating/Cooling
• Scene function

The total current of two adjacent outputs must not exceed 20 A.

Interra Combo ITR516-16A

• Lighting control can be made with every output of the combo switch actuator.
• Heating control can be made with every output of the combo switch actuator.
• Every output of the combo module can be configured as shutter/blind provided that 2 consecutive outputs are available.
• Shutter/blind 24V configuration can be with 4 outputs of the combo module. However, it is only available in the first four outputs of the (*) blocks.
• Fan Coil 2 pipes configuration can be with 4 outputs of the combo module. However, it is only available in the first four outputs of the (*) blocks.
• Fan Coil 4 pipes configuration can be with 5 outputs of the combo module. However, it is only available in the first five outputs of the (*) blocks.
• The functionalities for each output include among other things timing functions, logic gates, scenes, disabling function, forced, working hours counter, periodical monitoring and different configurations for feedback telegrams.
• Last situation memory against power failure.
(*): Each block consists of every 6 outputs of the combo module that is starts from C1 output.

JUNG KNX switch actuator 24-gang KNX blinds actuator 12-gang 230241SR

rail mounting device, 12 rail units
with manual electronic operation and LED status indication
Project design and commissioning with ETS5 or a more recent version
ETS product family: Output
Product type: Binary output mix

Intended use

• Switching of electrical loads with floating contacts
• Switching of electrically-driven blinds, shutters, awnings and similar hangings
• Mounting on DIN rail according to EN 60715 in distribution box
