Schneider KNX - DALI Broadcast Master 4 channels/32, Secure-MTN6725-0005S

Can be installed in combination with the extension actuator (to obtain DALI Broadcast Master 4 ch/32  and  8 outputs (8 ch ON/OFF or 4 ch Up/Down)):

Schneider KNX - Switch-blinds actuator 8 outputs - extension - MTN6805-0008

 If your extension is not side by side with the master or the second extension you can use this cable:

Schneider KNX Cable flexible

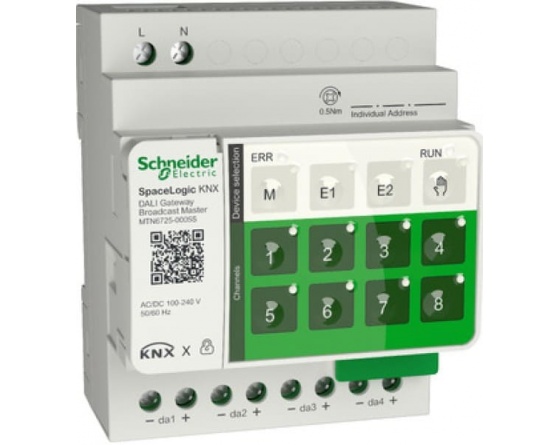

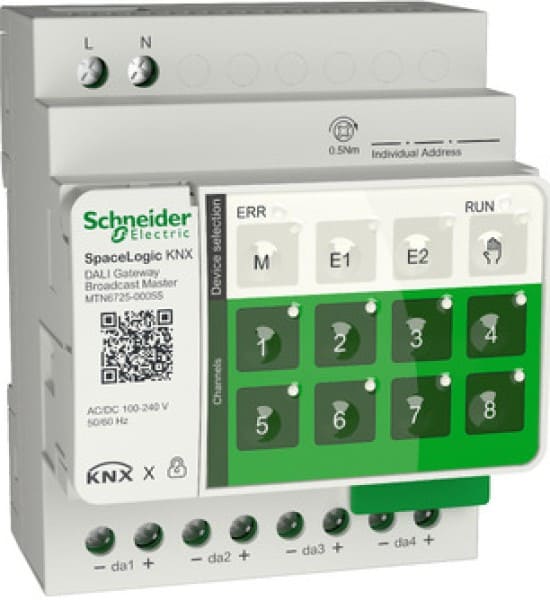

 The SpaceLogic KNX DALI Gateway Broadcast Master 4 channel/32 is a single-master application control-ler for controlling electronic ballasts with up to four DALI interfaces via the KNX installation bus. It supports ballasts according to EN 62386-102 ed1 (DALI1) as well as devices according to EN 62386-102 ed2 (DALI2).
The device transforms switching, dimming and colour control commands from the connected KNX system into corresponding DALI broadcast telegrams.
The SpaceLogic KNX DALI Gateway Broadcast Master has 4 DALI channels which can control up to 128 ECGs (each DALI channel supports 32 ECGs).
The required power supply for the connected ECGs is provided directly from the device. Additional DALI power supplies are not required and not allowed.
The gateway is checking the number of connected ECGs automatically. If more than 32 ECGs are con-nected to one channel, the channel stops working and generate an overload failure.
The device is available in a 4TE wide DIN rail housing for direct installation in an electrical distribution board. The bus connection is made via a standard KNX bus connector. Mains and DALI lines are con-nected via screw terminals on the device.
Per gateway the ECGs can be controlled in 4 Dali bus lines.
In addition to the pure gateway functions, the SpaceLogic KNX DALI Gateway Broadcast Master offers nu-merous additional features:
• General adjustable Soft-Start Behaviour for ECGs
• Coloured light control with the support of Device Type 8 (DT-8) ballasts and control via communication objects
• Coloured light control depending on ballast Sub-Type:
• Colour Temperatur (DT-8 Sub-Type Tc)
• RGB (DT-8 Sub-Type RGBWAF)
• HSV (DT-8 Sub-Type RGBWAF)
• RGBW (DT-8 Sub-Type RGBWAF)
• Automatic change of colour temperature depending on the light value (Dimm-To-Cold)
• Various operating modes such as normal, night and staircase mode
• Individual time settings for staircase mode, switch-on and switch-off delays
• Specially adjustable behaviours for alarm and lock situations for each channel
