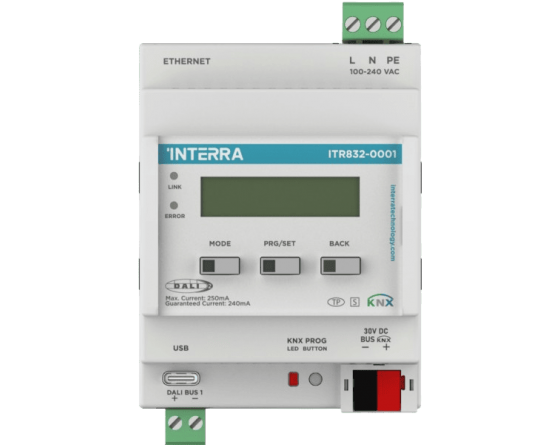

Interra 1 channel KNX-DALI Gateway ITR832-001

KNX - DALI Gateway w/ Ethernet (1x64 DALI)

ITR832-0001 is a single-channel KNX-DALI interface device used as an interface between DALI and KNX installations, enabling communication between the two protocols.

DALI devices (ballasts, etc., ECGs) that are connected to the line are supplied with the internal DALI power supply. Up to 1x64 DALI ballasts can be connected and 16 groups, 16 scenarios and 64 devices can be controlled with each DALI channel. It is also compatible with DT0, DT1, DT6, DT8-TC, DT8-RGB, DT8-RGBW. out of.

In addition, independent emergency lighting according to EN 62386-202 is supported and emergency lighting tests (e.g. function and time tests) can be triggered via the KNX cable. Feedback can also be sent to the KNX line. Each DALI device can be controlled individually, in a group or via broadcast control.
