LogicMachine5 Power DW1 - LM5p2-DW1 - Embedded systems

LM5 Power is an embedded platform with integrated Ethernet, USB, KNX/EIB, DALI, 1-Wire, serial interfaces. LM allows use as a cross-standard gateway, logic engine, visualisation platform, IP router. Scripting templates provide a user-friendly, flexible configuration interface and integration with a cloud / web services, third-party devices. With the use of custom scripts, the LM can work simultaneously as a thermostat, security panel, light controller, etc. LogicMachine APP store and external app development capability allow the device functionality to expand and adapt to a specific market segment.

• 1 x RS485
• 1 x RS485/RS-232 (schaltbar in der Software))
• 1 x 10/100 Ethernet mit passiver PoE Unterstützung
• 1 x KNX TP1 (TP-UART2 Physical Layer IC)
• 2 x DALI Master (total bis zu 128 DALI Vorschaltgeräte unterstützt)
• 2 x 1-Wire

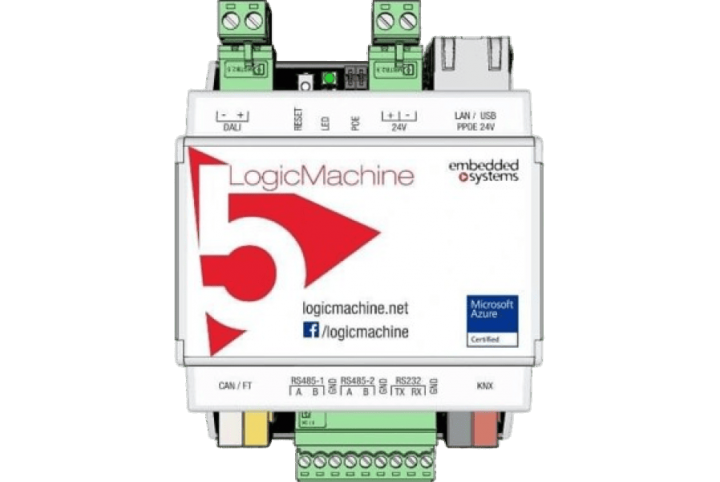

LogicMachine5 Power KNX CANx DALI - LM5p2-KCD - Embedded systems

LM5p2-KCD it offers more than the LM5p2-DW1: canX and Dali2 (Multi-master is supported).

LogicMachine5 Power brings redundancy and maintenance possibilities of your installation to another level.

LM5 Power is an embedded platform with integrated Ethernet, USB, KNX/EIB, CAN FT, DALI, Serial interfaces. LM allows to use it as cross-standard gateway, logic engine, visualization platform, IP Router. Scripting templates provides user-friendly, flexible configuration interface and integration with cloud/web services, 3rd party devices. Via applying custom scripts LM can simultaneously act as thermostat, security panel, lighting controller, etc. LogicMachine application store and external app development possibility allows to extend device functionality and adjust to a specific market segment. Further, LM5 supports iOS Siri and Google Voice control via native apps available in App Store and Google Play.

In comparison with DALI built in other LM5 devices (like DW1, DR, RD), you can use it as DALI Multi-master. The commissioning software for LM supports both DALI1 and DALI2.

Hightlights

• Power-over-Ethernet powering
• Application development and application store
• Cloud ready device with Microsoft Azure, Amazon Web Services and other services supported
• Gateway and uniform way of control of KNX TP1, CAN FT, DALI, ModBus RTU/TCP, BACnet IP, ZigBee, DMX 512, MQTT broker/client and more
• Both DALI1 and DALI2 are supported via comissioning app on LM5. Multi-master is supported
• Unlimited scenario and logic engine
• Unlimited visualization platform for PC and for touch devices
• Remote KNX bus control and KNX device reprogramming
• KNX Data Secure and secure KNX/IP Routing
• Object logging with trends support and data exporting to external servers
• iOS Siri and Google Voice control supported via native apps
• CANx configurator, DALI and ZigBee comissioning apps are freely available from LM app store
• CANx technology description
• Size: 4 DIN units

I/O specification

• 1 x RS485
• 1 x RS485/RS-232 (switchable in software)
• 1 x 10/100 Ethernet with passive PoE support
• 1 x KNX TP1 (TP-UART2 physical layer IC)
• 1 x CAN FT
• 1 x DALI master
• 1 x USB2.0

Schneider KNX - Wiser for KNX logic controller - LSS100100

The HomeKit plugin for Wiser for KNX (Available) /spacelYnk controller is designed to contrai KNX devices in the installation thraugh Apple's Home application, available in Apple devices like iPhone, iPad, iWatch, Mac, Apple TV, etc. (hereafter referred to as the app/mobile application).

Wiser for KNX. Wiser for KNX (formerly know as homeLYnk) is the easiest way to visualise and control a complete Home Automation Solution in a KNX and Modbus networks. Wiser for KNX can be used in several ways: As an user interface to display and control relevant informations on mobile devices. As a gateway to translate and enable communication between different products. As an aggregator to stock, analyze, and send the data (.csv file for example). As an event controler that sends email in case of issues. Applications: Logical functions. WEB SCADA visualization for PC and touch-devices. Cross-standard gateway between KNX and Modbus RTU/TCP. BACnet Server (150 points). Integration with third party devices over RS-232 (IR, AV). Scheduling. Camera streaming. Data logger with trends. Pre-made Modbus templates. Easy bloc programming. Up to 8 users with different login and password. BACnet certified BACnet Application Specific Controller (B-ASC). New icons. Supply voltage: 24 V DC. Power consumption: 2 W. LED indicator 1: Green LED (CPU load). LED indicator 2: Green LED (Operation) or Red LED (Reset). Interface: 1x KNX, 1x10BaseT/100BaseTX, 1x RS-485 (incl. Polarization resistors 47 k Ohm, no termination). 1x RS-232, 1x USB2.0, 1x Reset push button. Terminal: KNX bus: Bus connecting terminal 2 x 0.8 mm. Power supply: Clamp, 0.5 mm²-1.5 mm². Serial: Clamp, 0.5 mm²-1.5 mm². Operation: -5°C to +45°C. Environment: Can be used at elevations up to 2000 m above sea level (MSL). Max. humidity: 93 %, no condensation. Dimension: 90 x 52 x 58 mm (HxWxD). Device width: 3 modules, approx. 54 mm. Visualisations can be generated automatically for smartphone, tablet and touch panels using the EConfigure KNX Lite (LSS900100) software.

Wiser for KNX enables you to :

    -control your home's equipment: lighting, heating, shutters, etc.
   - view and compare consumption curves, temperatures, air quality, etc.
    -create schedules and diaries (holiday periods, bank holidays, etc.)
    -send notification emails in the event of an alert or fault,
    -add wireless products for extensions
    -integrate connected objects (IoT)
    -view IP cameras
    -create logic functions
    -store and historise data in .csv format.
    -modbus, bacnet, enocean interoperable

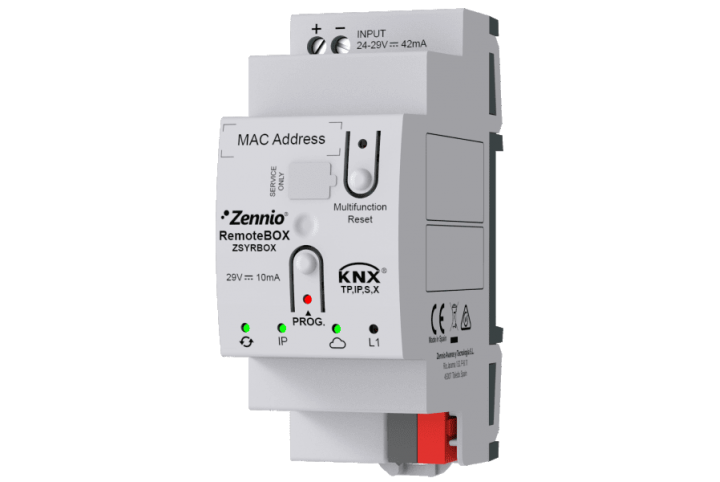

Zennio RemoteBOX - Device for remote control - ZSYRBOX

DIN rail device (2 units) that allows the remote control of the installation through Zennio Remote, being able to distribute 100 controls in up to 12 customizable pages. It includes 10 logical functions. It is compatible with KNX Secure.
Advanced features can be activated with the following licenses:

supported application :Zennio Remote

-Ref. 8500008 - ZenVoice License – Voice Control License. Remote Control License is needed (Ref.8500006).

 Zennio Remote Web
