Zennio 320mA KNX KUPSupply ZPSU320

KNX Universal System Power Supply with additional 29 V DC output. Maximum current 320 mA. 110-240 V ~ 50/60 Hz input voltage. Installation in DIN-rail (4.5 units).

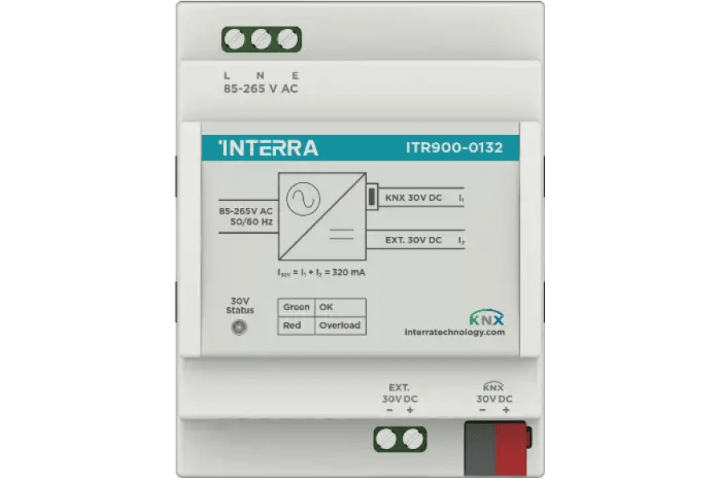

Interra 320mA KNX power supply  ITR900-132 :

• Mounting Location: Installation only on a 35 mm DIN rail of a distribution board.
• Device needs at least 4 standard modules width at installation.
• Power supply has an additional 30 VDC short circuit and overload protected voltage output that can be used to power an additional bus line (in combination with a separate choke).
• The voltage output is overload, short circuit and over temperature protected.
• Output without choke can be used as a constant 30 VDC supply and output with choke can be used as a KNX Bus supply.

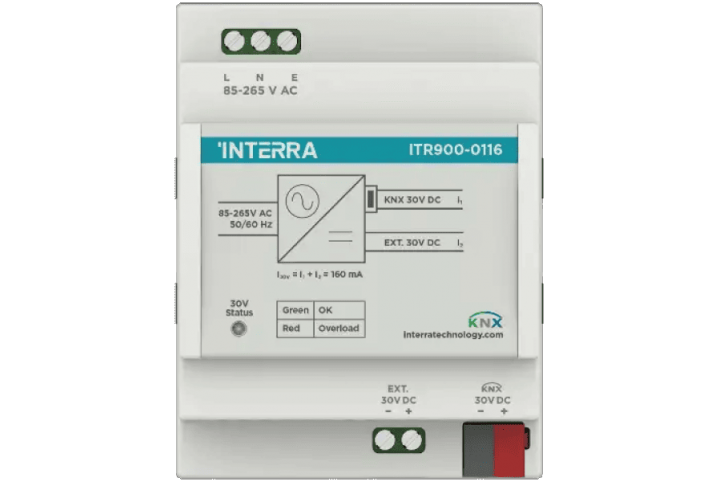

Interra 160mA KNX power supply  ITR900-116 :

• Mounting Location: Installation only on a 35 mm DIN rail of a distribution board.
• Device needs at least 4 standard modules width at installation.
• Power supply has an additional 30 VDC short circuit and overload protected voltage output that can be used to power an additional bus line (in combination with a separate choke).
• The voltage output is overload, short circuit and over temperature protected.
• Output without choke can be used as a constant 30 VDC supply and output with choke can be used as a KNX Bus supply.

Zennio 160mA KNX power KUPSupply-ZPSU160

Power supply KNX 160mA with 29VDC auxiliary power supply

• KNX system power source with additional 29VDC output.
• Supply voltage 230V~ 50/60Hz.
• Maximum consumption of KNX BUS line 160mA.
• Maximum additional 29VDC output consumption of 250mA -
• KNX coil included.
• Mounting on DIN rail (EN 50022), pressure mounted.
• Protection against short circuit and overvoltage.
• Reset button and overload status LED.
• Complies with CE directives.

Count 10mA per KNX participant to choose a KNX power supply.

Safety instructions:

• The installation must be equipped with a device that ensures omnipolar disconnection. A 10A circuit breaker is recommended.
• Do not connect the main network voltage or other external voltages to the KNX data bus or to the additional output.
• Connecting an external voltage may endanger the electrical safety of the entire KNX system.
• Always check during installation that there is sufficient insulation between the conductors of the 230V main voltage and the conductors of the Bus and its extensions.
• Do not cover the ventilation grilles to prevent the temperature acceptable to the device from being exceeded.
• Caution! Once the device has been installed, it must not be accessible from the outside.
• The electrical equipment must only be installed by qualified electricians and in accordance with accident prevention regulations.
• To prevent electrical accidents, before working on the unit, disconnect the main power supply with the circuit breaker located upstream of the unit.
• Failure to follow the installation instructions may cause damage to the installation.

Zennio ALLinBOX 46 Multifunction device - ZPR46

Multifunction device comprising :

• A KNX 160mA power supply
• A KNX-IP Interface
• 4 16A outputs
• 6 analog/digital inputs

Zennio ALLinBOX 88 Multifunction device - ZPR88

Multifunction device comprising :

• A KNX 320mA power supply
• a KNX-IP Interface
• 8 16A outputs
• 8 analog/digital inputs

Zennio ALLinBOX 1612 v2 Multifunction device - ZPR1612V2

The starting point for most projects incorporating control and monitoring functionalities. Multifunction device that integrates a 640 mA KNX power supply, KNX-IP Interface, 4 independent thermostats, logical module, 12 analog/digital inputs and 16 relay outputs (16A C-Load) in only 12 DIN rail units. Offers multiple configuration options as individual outputs, shutter channels or fan coil controller (2/4 pipes).

Schneider - KNX secure IP Interface - MTN6502-0105

This device from the Spacelogic KNX range is an IP Interface DIN Rail. The Spacelogic KNX IP Interface is an interface between IP and KNX. You can access the KNX Bus from every point of your LAN. The Spacelogic KNX IP Interface can be used as a programming interface for ETS 5 Software and allows to access the KNX bus over the Internet via a VPN. The device supports KNX Security which can be enabled in ETS. With its interface functionality (tunneling) KNX security prevents unauthorized access. The device supports up to 8 tunneling channels. For each tunneling channel, a separate individual address must be configured. The device is delivered with 2 integrated push-buttons to select the tunneling channel and 3 status LEDs. The Interface is powered by the KNX bus. An additional power supply is not needed. It allows mounting on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. This application requires ETS 5 or higher. The LAN network is connected via the RJ45 socket. The width of the device for 1 module is about 18mm. The device is delivered with bus connecting terminal and cable cover.
