Interra Combo ITR516-16A

• Lighting control can be made with every output of the combo switch actuator.
• Heating control can be made with every output of the combo switch actuator.
• Every output of the combo module can be configured as shutter/blind provided that 2 consecutive outputs are available.
• Shutter/blind 24V configuration can be with 4 outputs of the combo module. However, it is only available in the first four outputs of the (*) blocks.
• Fan Coil 2 pipes configuration can be with 4 outputs of the combo module. However, it is only available in the first four outputs of the (*) blocks.
• Fan Coil 4 pipes configuration can be with 5 outputs of the combo module. However, it is only available in the first five outputs of the (*) blocks.
• The functionalities for each output include among other things timing functions, logic gates, scenes, disabling function, forced, working hours counter, periodical monitoring and different configurations for feedback telegrams.
• Last situation memory against power failure.
(*): Each block consists of every 6 outputs of the combo module that is starts from C1 output.

Zennio MAXinBOX 20   ZIOMB20

KNX Multifunction actuator with KNX Secure - 20 outputs 16 A

Multifunction actuator for DIN-rail (10 units) that offers multiple configurations of up to 10 shutter channels, up to 20 independent outputs of 16 A (capacitive loads supported) and up to 5 blocks of 2-pipes fan coil controller. It allows manual control of its outputs thanks to the push buttons on the cover. LED indicators can show the status of its outputs. It includes 30 independent logical functions to enlarge the versatility of the automations in KNX system. It is compatible with KNX Secure. Accessories: AC/DC shutter adapters.

JUNG KNX switch actuator 24-gang KNX blinds actuator 12-gang 230241SR

rail mounting device, 12 rail units
with manual electronic operation and LED status indication
Project design and commissioning with ETS5 or a more recent version
ETS product family: Output
Product type: Binary output mix

Intended use

• Switching of electrical loads with floating contacts
• Switching of electrically-driven blinds, shutters, awnings and similar hangings
• Mounting on DIN rail according to EN 60715 in distribution box

Zennio MAXinBOX 24 v2 -24 outputs KNX actuator ZIOMB24V2

Multifunction actuator for DIN-rail (12 units) that offers multiple configurations of up to 12 shutter channels, up to 24 independent outputs of 16 A (capacitive loads supported) and up to 6 blocks of 2-pipes fan coil controller. It allows manual control of its outputs thanks to the push buttons on the cover. LED indicators can show the status of its outputs. It includes 30 independent logical functions to enlarge the versatility of the automations in KNX system. Accessories: AC/DC shutter adapters.

Zennio MAXinBOX SHUTTER 4CH v3 - Shutter actuator 4 channels ZIOMBSH4V3

Shutter actuator for DIN-rail (4.5 units) It includes a module with 20 logical functions and allows manual control of the outputs with status indication through LEDs. Accessories: AC/DC shutter adapters.

Zennio MAXinBOX SHUTTER 8CH v3 - Shutter actuator 8 channels ZIOMBSH8V3

Shutter actuator for DIN-rail (8 units) It includes a module with 20 logical functions and allows manual control of the outputs with status indication through LEDs. Accessories: AC/DC shutter adapters.

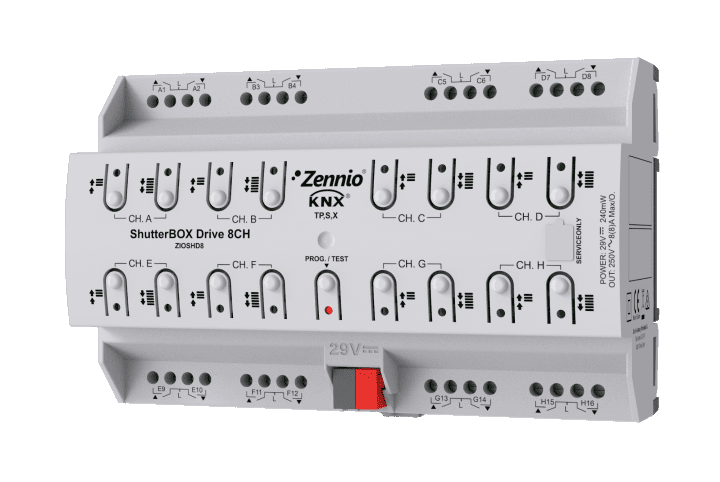

Zennio ShutterBOX Drive 8CH- 8-Channel Shutter Actuator - ZIOSHD8

8-Channel Shutter Actuator with automatic travel time measurement and KNX Secure.

8-channel shutter actuator for DIN rail (8 units), which allows automatic travel times measurement through current detection.
It includes 6 alarms per channel, a module of 20 logic functions and allows manual control of the outputs with LED status indication. Among its complete functionality, the event-driven automatic control stands out, calculating the position of the sun at each moment to be able to adjust the position of the shutter and the slats.
It is compatible with KNX Secure.

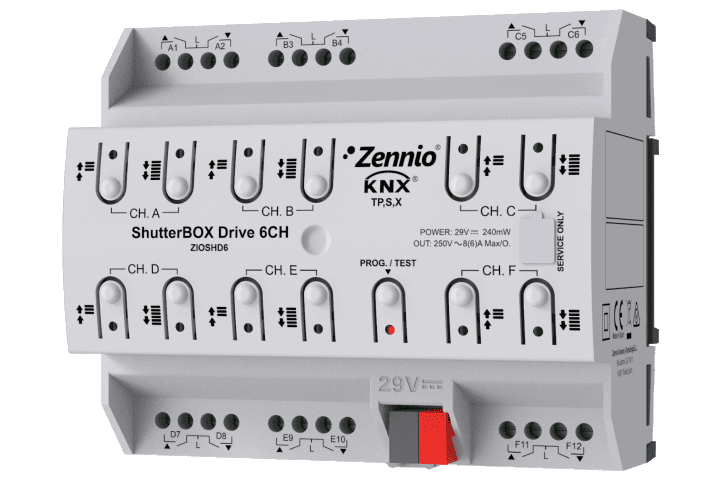

Zennio ShutterBOX Drive 6CH- 6-Channel Shutter Actuator - ZIOSHD6

6-Channel Shutter Actuator with automatic travel time measurement and KNX Secure.

6-channel shutter actuator for DIN rail (6 units), which allows automatic travel times measurement through current detection.
It includes 6 alarms per channel, a module of 20 logic functions and allows manual control of the outputs with LED status indication. Among its complete functionality, the event-driven automatic control stands out, calculating the position of the sun at each moment to be able to adjust the position of the shutter and the slats.
It is compatible with KNX Secure.
