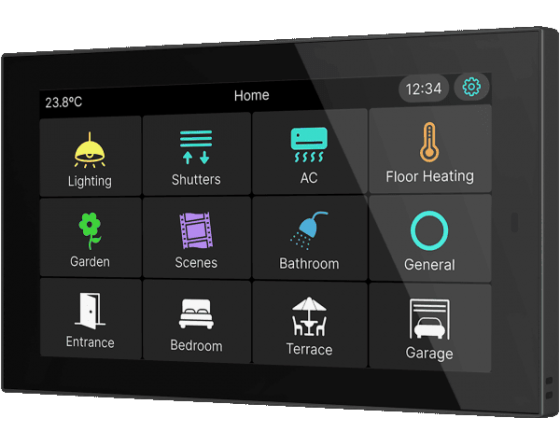

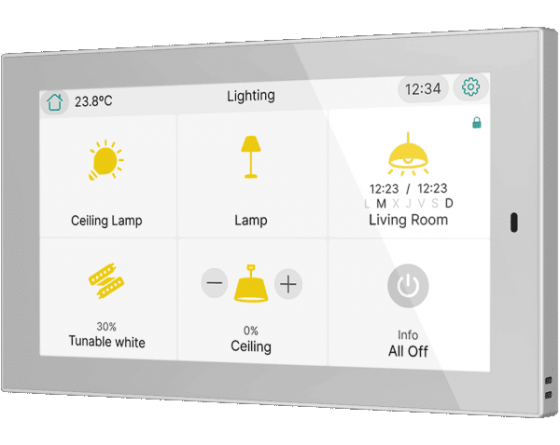

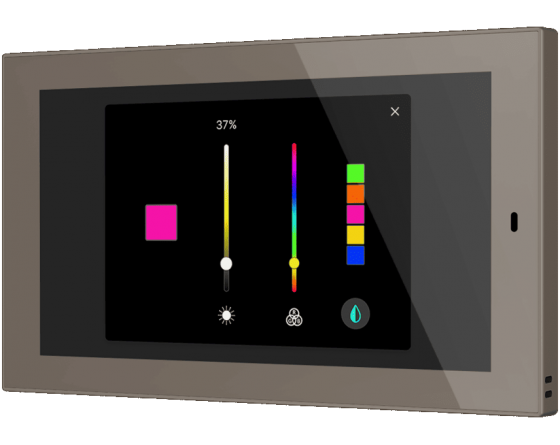

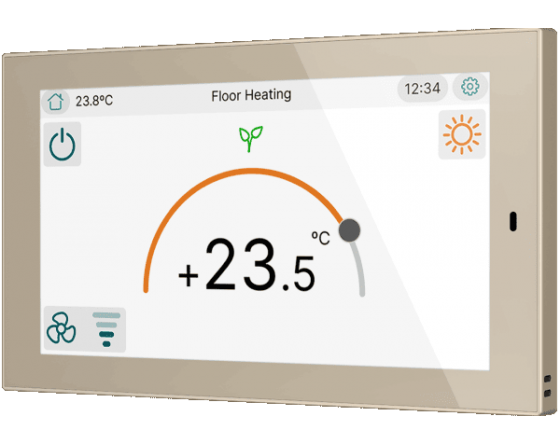

Zennio CX50 KNX touch panel 5”  ZVICX50A   ZVICX50S   ZVICX50W  ZVICX50C   ZVICX50M

Capacitive touch panel 5"

CX50 is a 5” KNX capacitive touch panel that can be installed in either horizontal or vertical orientation. Designed for room control or as a main controller for the installation, it integrates temperature and humidity sensors enabling precise ambient regulation. It allows the configuration of up to 96 functions distributed across fully customisable pages.
Its modern and intuitive graphical interface can be set to light or dark mode and features customisable colour icons, with the possibility of importing user-defined designs. In addition, it includes a screensaver function to display date and time or a personalised image.
It is powered exclusively through the KNX bus, enabling flexible installation without the need for an additional power supply. It incorporates 4 analogue/digital inputs for connecting temperature probes, motion sensors or binary devices. KNX Secure included.

Colours shown are based on the RAL system, an international norm widely used to define hues with precision.

Finish Name		RAL (colour reference)	YY / XX ref suffix
	Silver	RAL 9006	S / 06
	Anthracite black	RAL 9004	A / 05
	Matt white	RAL 9016	MW / 09
	Champagne	RAL 1035	C / 04
	Mocha	RAL 7006	M / 03
