Theben - 1-way heating actuator - 4941641 - HU 1 S RF KNX

Function description

• Flush-mounted 1-way heating actuator, KNX RF, Data Secure
• 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
• With integrated controller
• Silent control of 230 V AC thermal actuators
• Integrated heating/cooling temperature controller
• Valve protection function
• Secure communication via KNX-RF with support from KNX Data Secure
• Easy installation due to the compact housing
• 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
• Integrated temperature monitoring for increased operating safety, e.g. in the event of overload

Theben - actuator KNX RF  1 canal - 4941621 - SU 1 S RF KNX.

- Flush-mounted 1-way switching actuator 10 A 130 μF, KNX RF, Data Secure

- 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)

- Adjustable features: NC/NO contact, switching, delayed switching, pulse function

- Secure communication via KNX-RF with support from KNX Data Secure

- Easy installation due to the compact housing

- 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)

- Integrated temperature monitoring for increased operating safety, e.g. in the event of overload

- The binary inputs are assigned to the output as standard (function test before programming)

Theben - Flush-mounted 1-way blind actuator - 4941651 - JU 1 S RF KNX

Function description

• Flush-mounted 1-way blind actuator 5 A, KNX RF, Data Secure
• 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
• For controlling drives for blinds, roller blinds, sun and vision protection devices, skylights, and ventilation flaps
• Integrated automatic ventilation function
• Secure communication via KNX-RF with support from KNX Data Secure
• Easy installation due to the compact housing
• 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
• Integrated temperature monitoring for increased operating safety, e.g. in the event of overload
• The binary inputs are assigned to the output as standard (function test before programming)

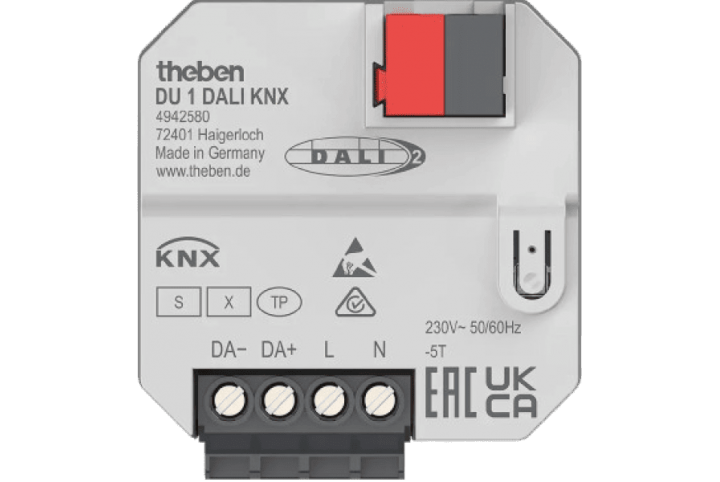

Theben - Flush-mounted 1-way DALI actuator- 4942580 - DU 1 DALI KNX

Function description

• Flush-mounted 1-way DALI actuator, KNX TP, Data Secure
• DALI-2 certified
• Interface between the DALI and the KNX bus system
• Simple commissioning of up to 30 ECGs in broadcast mode
• Control of RGB, RGBW, Tunable White or conventional luminaires
• DT-8 luminaire support
• Easy replacement of ECGs in the event of a fault
• Universal mounting thanks to the compact housing
• 2 binary inputs for potential-free contacts such as pushbuttons, switches, window contacts, temperature sensor (input I2)
• The binary input I1 is assigned to the output ex works (function test and operation even without programming)

Theben - Flush-mounted 1-way dimming actuator -4941671- DU 1 S RF KNX

Function description

• Flush-mounted 1-way dimming actuator 250 W, KNX RF, Data Secure
• 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
• Optimised dimming output for dimmable energy-saving lamps, LEDs, incandescent and halogen lamps, and dimmable transformers.
• Easy to adapt to different lamps thanks to automatic load detection
• Adjustable dimming curve for precise and flicker-free dimming
• Secure communication via KNX-RF with support from KNX Data Secure
• Easy installation due to the compact housing
• 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
• Integrated temperature monitoring for increased operating safety, e.g. in the event of overload
• The binary inputs are assigned to the output as standard (function test before programming)

Theben - flush-mounted wireless inputs - 4961614 - TU 4 S RF KNX

Function description

• 4-way flush-mounted wireless push-button interface
• Secure communication via with support of KNX Data Secure
• 4 binary inputs for potential-free buttons and signaling contacts
• 1 additional input for temperature sensor
• Free assignment of the functions switching, dimming, blinds, temperature measurement and transmission
• Easy installation due to the compact housing

Theben - média coupler TP-RF KNX - 9070868

- Connects KNX RF devices of one radio line with the KNX bus twistedpair

- Power supply via KNX bus voltage

- Supports long frames for "KNX Secure" and enables faster download of large applications in parallel

- Ranges of max. 30 m within the building are possible

- Has a repeater function, i.e. received telegrams are sent again to increase the range

Theben - TA 2 S KNX - 4969222

• Function description

  • • Binary input/binary output sensor interfaces
    • 2-way key interface
    • 4-pole cable connection
    • Free allocation of functions: Switch/key, dimming, blinds, valuator, sequences, controlling LED
    • Can be installed in flush-mounted sockets with conventional sensors/switches
    • Flexible LED controlling, thanks to increased output current of 3 mA commercially available LEDs and low curent LEDs can be controlled
    • Inputs can be reconfigured to outputs with parameterizable flashing and pulsing function
    • Colour coding of wiring pairs
