Airzone-Aidoo KNX v2.0 Midea / Kaysun V5 Pro-AZAI6KNX2MD1

Airzone-Aidoo KNX v2.0 Mitsubishi Heavy  KNX Controller-AZAI6KNX2MHI

Device to manage and integrate Mitsubishi Heavy units in KNX TP-1 control systems. Externally powered by the indoor unit.

Features:

• • Control of the parameters of the unit.
  • KNX Control.
  • KNX standard data.
  • 3 digital configurable inputs.
  • Easily configurable from ETS.
  • Communication errors detection.
  • Allows power supply through the KNX bus during configuration with a consumption of 1.4 W.

Airzone-KNX-Airzone integration gateway X6 - AZAI6KNXDA0

Airzone integration gateway of HVAC Airzone systems in KNX TP-1 control systems through ModBus. Bus KNX power supply. DIN-rail mounting.

Functionalities:

• One Airzone system per KNX gateway.
• Full KNX.
• KNX standard data.
• Easily configurable from ETS.
• Zone control through KNX devices.
• Up to 8 zones available for centralized systems and up to 14 for distributed systems.
• Type of installation control.
• Communication errors detection.

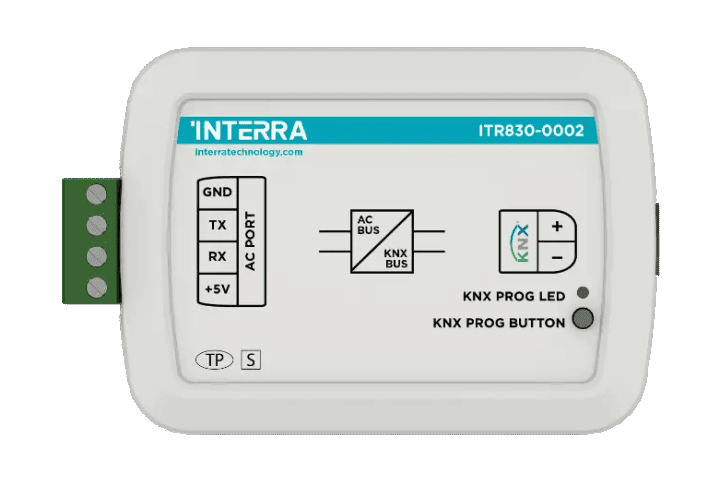

Interra Daikin Split AC - KNX Gateway ITR830-0002

ITR830-0002 is an air conditioning interface for monitoring and controlling all functional parameters of Daikin Split air conditioners via KNX line. The Daikin Split AC - KNX interface works compatible with models sold by Daikin and classified as Split in the compatibility list. Thanks to its easy installation feature, Daikin Split AC - KNX interface can be installed on the indoor unit of the air conditioner to be installed or in a suitable location away from the air conditioner. Daikin Split AC - KNX interface is installed by connecting one side directly to the electronic circuit of the AC indoor unit and the other side directly to the KNX bus.

Main Functions:

•  The ITR830-0002 interface allows bidirectional integration of Daikin Split air conditioners with the KNX bus.

 •   ITR830-0002 includes 4 logical advanced parameters, each logical parameter can contain up to 4 inputs with logic conditions and can be configured as OR, AND & SPECIAL OR logical operator.

 •  The ITR830-0002 includes 8 advanced transducer parameters and each transducer can perform four operation calculations depending on the input type.

 •  Logical and transducer parameters can be used for energy saving, configurable scenarios, temperature limits, etc.

 •   The Daikin AC unit has error notifications for errors that may occur in exceptional cases.

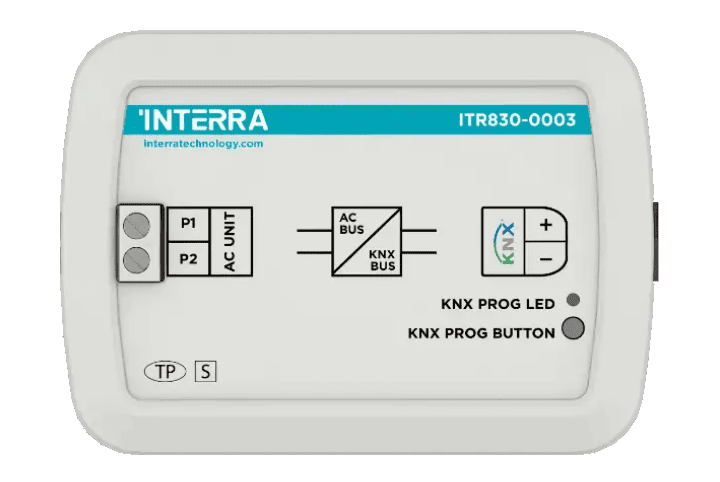

Interra Daikin Sky AC - KNX Gateway ITR830-0003

ITR830-0003 is an air conditioner gateway used for monitoring and controlling all the functioning parameters of Daikin Industries air conditioners via the KNX bus line. Daikin Sky & VRV AC - KNX Gateway is compatible with models in Sky & VRV types categorized in the compatibility list sold by Daikin Industries. Daikin Sky & VRV AC - KNX Gateway has an easy installation feature and can be installed inside the own AC indoor unit or a proper location away from the air conditioner, it connects one side directly to the electronic circuit of the AC indoor unit and in the other side directly to the KNX bus.

Main Functions:

•  ITR830-0003 device provides complete bidirectional integration of Daikin Sky & VRV air conditioners with KNX bus.

• Includes 4 logical advanced parameters, each logical parameter has up to 4 inputs and can be configured as AND, OR & XOR.

• Includes 8 advanced converter parameters, each converter has four operations math calculations according to the input type.

• Logic and converter parameters can be used for energy savings, configurable scenes, temperature limits etc.

• The Daikin air conditioner unit provides error notifications for errors that may occur in exceptional cases.

Interra Midea VRF AC - KNX Gateway ITR830-0013

TR830-0013 is an air conditioner gateway used for monitoring and controlling all the functioning parameters of Midea air conditioners via the KNX bus line. Midea VRF AC - KNX Gateway is compatible with models in VRF types categorized on the compatibility list published by Interra. Midea VRF AC - KNX Gateway has an easy installation feature and can be installed inside the own AC indoor unit or in a proper location away from the air conditioner, it connects one side directly to the electronic circuit of the AC indoor unit and on the other side directly to the KNX bus.

Main Functions:

• ITR830-0013 device provides complete bidirectional integration of Midea air conditioners with KNX bus.

• Includes 4 logical advanced parameters, each logical parameter has up to 4 inputs and can be configured as AND, OR & XOR.

• Includes 8 advanced converter parameters, each converter has four operations math calculations according to the input type.

• Logic and converter parameters can be used for energy savings, configurable scenes, temperature limits, etc.

• The Midea air conditioner unit provides error notifications for errors that may occur in exceptional cases.

ISE - Set SMART CONNECT KNX Vaillant S-0001-006

The SMART CONNECT KNX Vaillant is simply connected to the eBUS of your KNX installation. Use the ETS to make configurations, carry out set up and Bob's your uncle.

Intelligent heating control via KNX: Together with the system controllers sensoCOMFORT or multiMATIC, the SMART
CONNECT KNX Vaillant offers integration between the Vaillant system and KNX.
Features:
• Control of operation mode and temperature setpoint values for up to three heating zones
• Control of operation mode and temperature setpoint value for hot water supply
• Control of ventilation system operation mode
• System information like service mode, error messages, date and time, outside temperature and system status
• Heating circuit status values: Pump status, flow setpoint temperature, flow temperature, minimum flow setpoint
temperature for cooling mode, heating curve for each heating circuit
• Hot water status values: Circulation pump status, charging pump/3-way valve status, hot water temperature
• Display of temperature and error status for up to eight heat generators
• Yield values of solar systems and heatpumps
• Consumption values for hot water supply and heating (electricity and gas)
• Handover protocol from installer to system integrator
• Simple integration into KNX (can be completely configured via ETS)
• Easy-to-understand structure in the ETS5 thanks to channels
• Extensions via firmware updates

Zennio KLIC-MITTv3  Mitsubishi Air conditionner controller ZCLMITTV3

KNX-Mitsubishi Electric Gateway (IT connector)

Zennio gateway to control Mitsubishi Electric air conditioning units through IT terminal connector from KNX system in a bidirectional way. It includes 2 analog-digital inputs for temperature probes, motion sensor or dry contact binary inputs (switches, sensors or push buttons) and 10 logical functions.
